| Part No. | Rated Current | Leakage Current | Terminal | Electrical Schematics | Safety certification | |
| Input | Output | |||||
| DBA7-40A | 40A | <2.0mA | Bolt | Bolt |  |
CUL, CE, CQC, ROHS |
| DBA7-50A | 50A | <2.0mA | Bolt | Bolt | ||
| DBA7-60A | 60A | <2.0mA | Bolt | Bolt | ||
| DBA7-80A | 80A | <2.0mA | Bolt | Bolt | ||
| DBA7-100A | 100A | <2.0mA | Bolt | Bolt | ||
This parameter is only a specification product, we support parameter customization

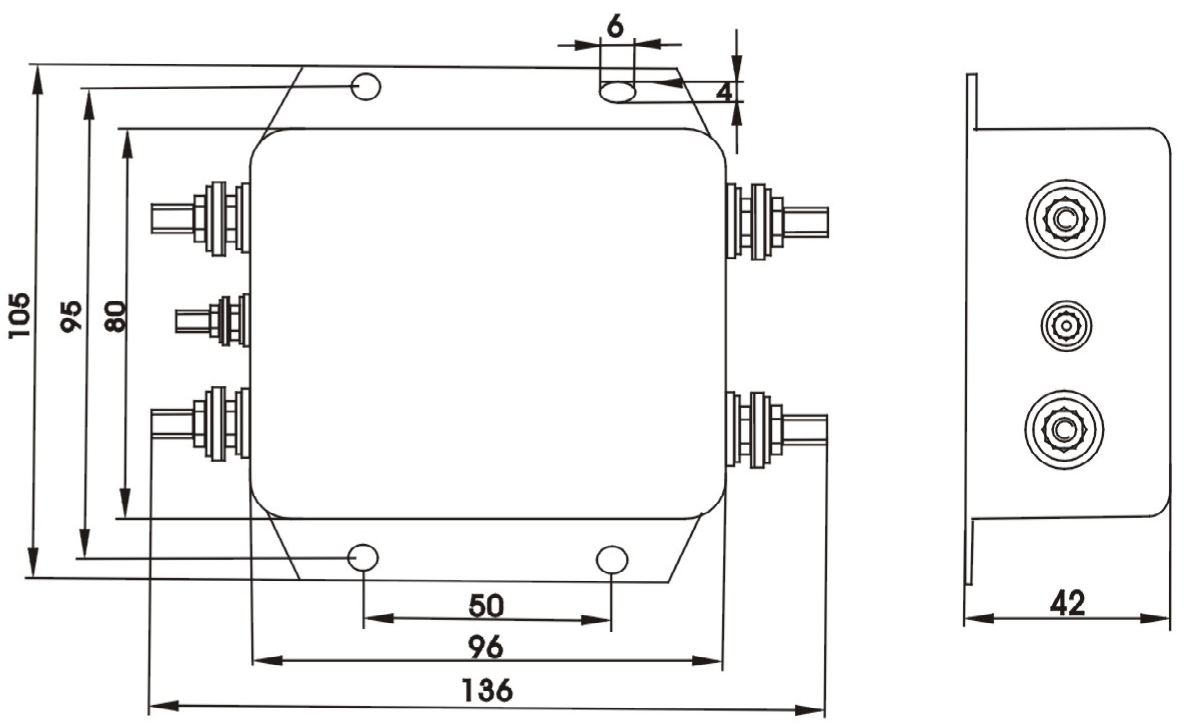

Outine Drawing and Dinemsions(mm)

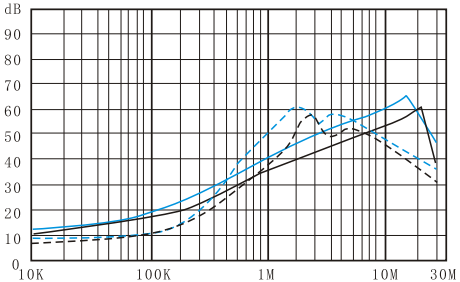

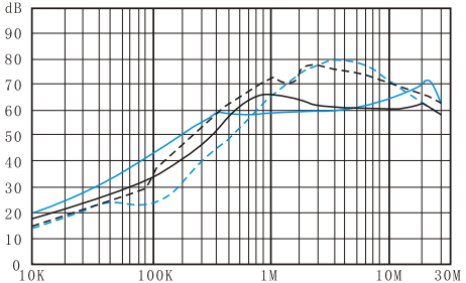

Insertion Loss This series of products are widely used in various industrial lighting systems, single-phase 220VAC power drive systems, disinfection and purification equipment, laser cutting equipment, industrial automation robots, large-scale medical equipment and other automated electrical equipment.
DBA7-40A / DBA7-60A
DBA7-80A / DBA7-100A
Product information  | Rated voltage | 1115/250VAC |
| Line Frequency | 50/60Hz | |
| Test Voltage | 1500VDC (line/line) | |
| 2150VAC (line/ground) | ||
| Insulation Resistance | >50MΩ@500VDC | |
| Climatic category | 25/085/21 |
industrial automation robots

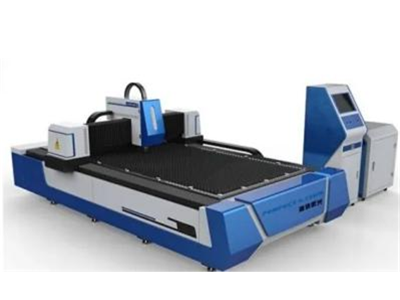

laser cutting equipment
Medical equipment
Features of the DAA1 Filter ■ Single Phase AC EMI power Filters ■ General purpose Filter ■ Filter with a good suppression to common-mode and differential-mode interference
